Products --> Intraocular Lens --> Hydrophobic Intraocular Lens   --> Vue Plus

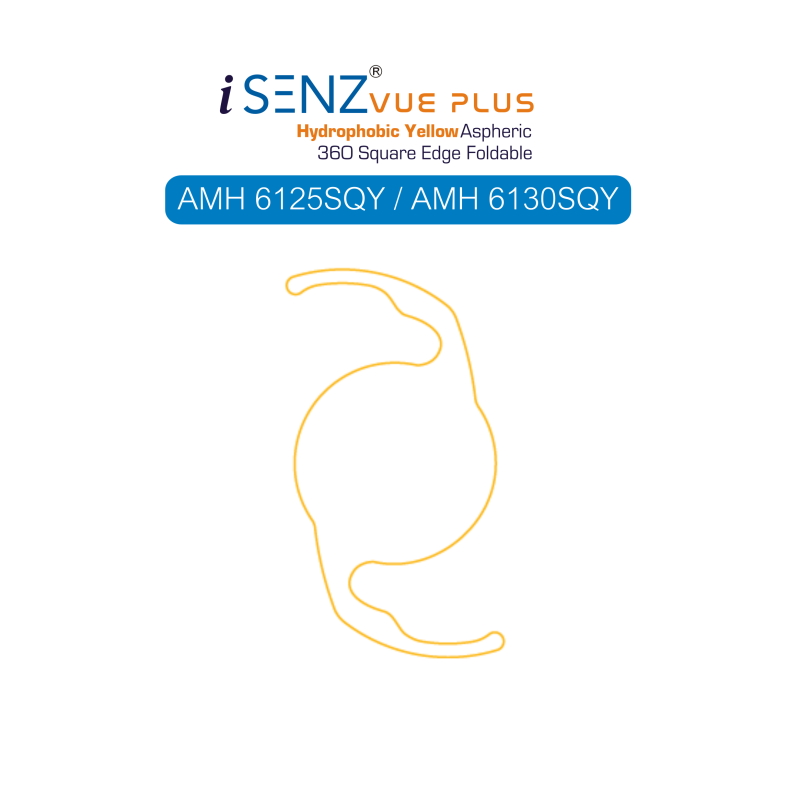

YELLOW Hydrophobic Acrylic Foldable-IOL

Description

Single Piece Sterile with 360° Square Edge HYDROPHOBIC ASPHERIC Arcylic Foldable Aspheric Posterior Chamber Intraocular Lens(IOL) with UV blocker, Optionally with blue light filter.

Features

1. This optic is MONOFOCAL
2. The IOL packed with Preloaded and non-Preloaded injector.

Material

Hydrophobic Acrylic blanks contain UV Absorber with < 0.5% Water Content. optional blue light filtering Chromophore

Refractive Index 1.493
Sterilization Ethylene Oxide





POWER RANGE



Standard Powers

00. 0 D -> + 30.0 D (0.5 D steps)

Extreme powers

-10.0 D -> -1.0 D (0.5 D steps)
+31.0 D -> +45.0 D (0.5 D steps)





DESIGN



Optic Diameter

6 mm

Overall Diameter

12.50 mm & 13.00 mm

Optic Design

Aspheric – Aberration Neutral
Biconvex (+0.00 D to 35.00)

Nominal A-constant

118.8

Haptic Design

Single Haptics with 0° Angulation

PCO Prevention

360° Square Edge

Shelf Life

3 years after sterilization







INJECTOR



Estimated Incision Size

1.8 – 2.4 mm

Injector & Cartridge

Front Load with 2.2 mm Cartridge
(Preload injector optional)



CONSTANTS



SRK/T A-Constant

A = 118.8*

Haigis

a0 = 1.96*
a1= 0.400 *
a2= 0.100*

Hoffer Q

pACD = 5.61*

Holladay I

SF = 1.85*

SRK/ II A-Constant

A = 119.1
