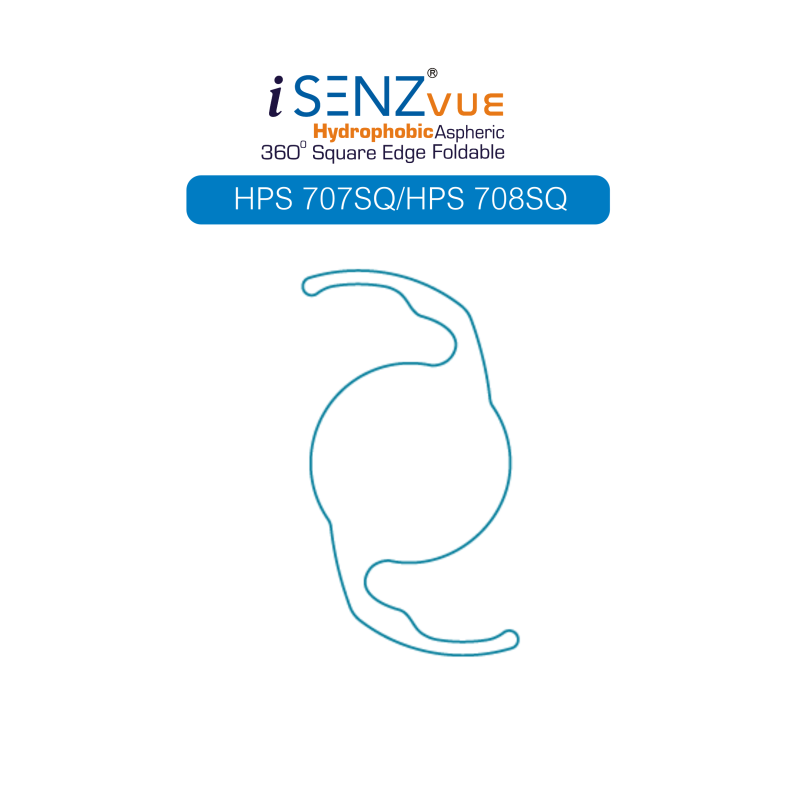

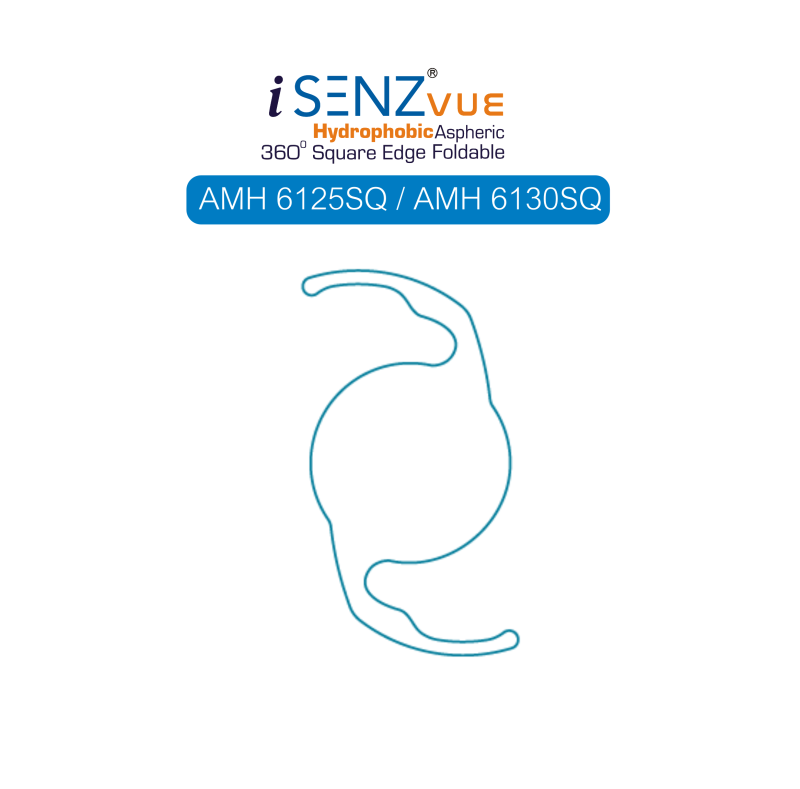

Hydrophobic Acrylic Foldable - IOL


Description
Single Piece Sterile with 360° Square Edge HYDROPHOBIC ASPHERIC Arcylic Foldable Aspheric Posterior Chamber Intraocular Lens(IOL) with UV blocker, Optionally with blue light filter.

Features
This optic is MONOFOCAL
The IOL packed with Preloaded and non-Preloaded injector.


Material
Hydrophobic Acrylic blanks contain UV Absorber with < 0.5% Water Content. optional blue light filtering Chromophore



Refractive Index 1.493
Sterilization Ethylene Oxide





POWER RANGE


Standard Powers

00. 0 D -> + 30.0 D (0.5 D steps)

Extreme powers

-10.0 D -> -1.0 D (0.5 D steps)
+31.0 D -> +45.0 D (0.5 D steps)



DESIGN


Optic Diameter

6 mm

Overall Diameter

12.50 mm & 13.00 mm

Optic Design

Aspheric – Aberration Neutral
Biconvex (+0.00 D to 35.00)

Nominal                         A-constant

118.8

Haptic Design

Single Haptics with 0° Angulation

PCO Prevention

360° Square Edge

Shelf Life

3 years after sterilization







INJECTOR


Estimated Incision Size

1.8 – 2.4 mm

Injector                               & Cartridge

Front Load with 2.2 mm Cartridge
(Preload injector optional)



CONSTANTS


SRK/T A-Constant

A = 118.8*

Haigis

a0 = 1.96*
a1= 0.400 *
a2= 0.100*

Hoffer Q

pACD = 5.61*

Holladay I

SF = 1.85*

SRK/ II A-Constant

A = 119.1
