PMMA Aspheric Optics with 360° Square Edge Intraocular Lens





 POWER RANGE

Standard Powers

  + 10.00 D to + 35.00 D (0.5 D steps)

Extreme Power

  - 10.0 D to +9.00 D (1.0 D steps)
 + 36.00 D to +40.00 D (1.0 D steps)





Model IMC 5112 IMC 6130 IMC 5212 IMC 6125H
Optic Diameter 5.00 mm 6.00 mm 5.50 mm 6.00 mm
Overall Diameter 12.50 mm 13.00 mm 12.50 mm 12.50 mm
Optic Design Equiconvex Equiconvex Equiconvex Equiconvex

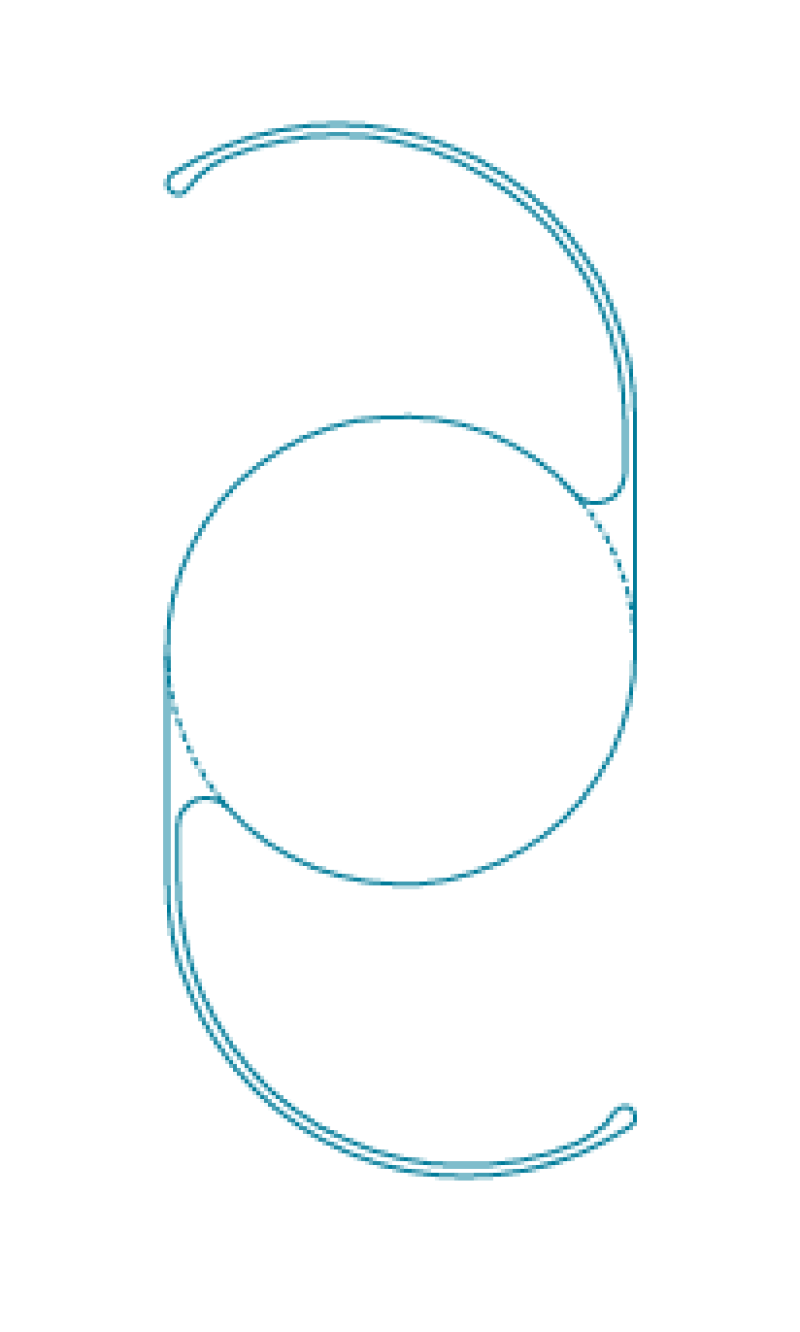

Haptic Design "Cap.C" Design with StepValult "Cap.C" Design with StepValult "Cap.C" Design with StepValult "Cap.C" Design with StepValult
Ac Depth 5.00 mm 5.00 mm 4.80 mm 4.80 mm

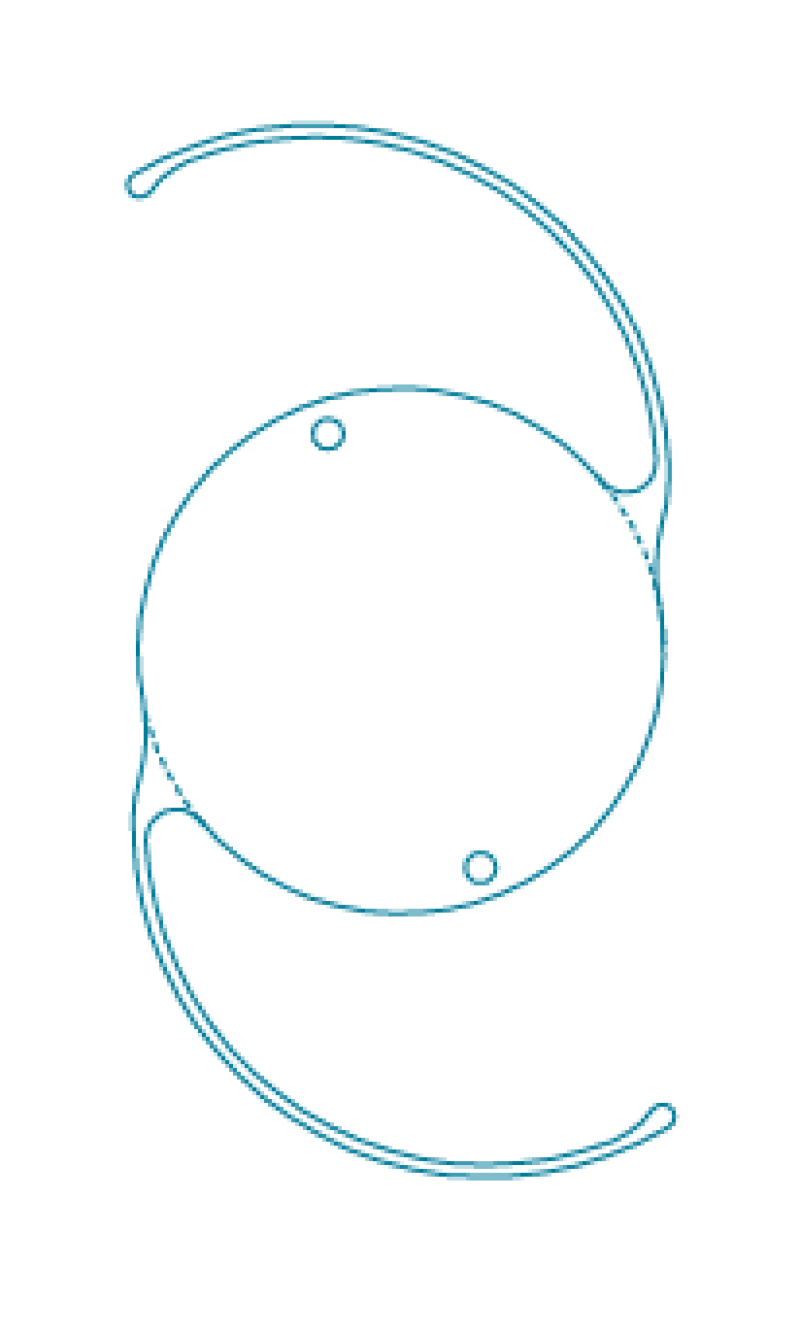

Dialing Holes Nil Nil Nil 2
Suggested A Constant 118.4° 118.4° 118.4° 118.2°
Shelf Life 5 years after sterillization 5 years after sterillization 5 years after sterillization 5 years after sterillization



Model IMC 6130H AMP 6153H IMS 6125 IMC 6135
Optic Diameter 6.00 mm 6.50 mm 6.00 mm 6.50 mm
Overall Diameter 13.00 mm 13.00 mm 12.50 mm 13.50 mm
Optic Design Equiconvex Equiconvex Equiconvex Equiconvex

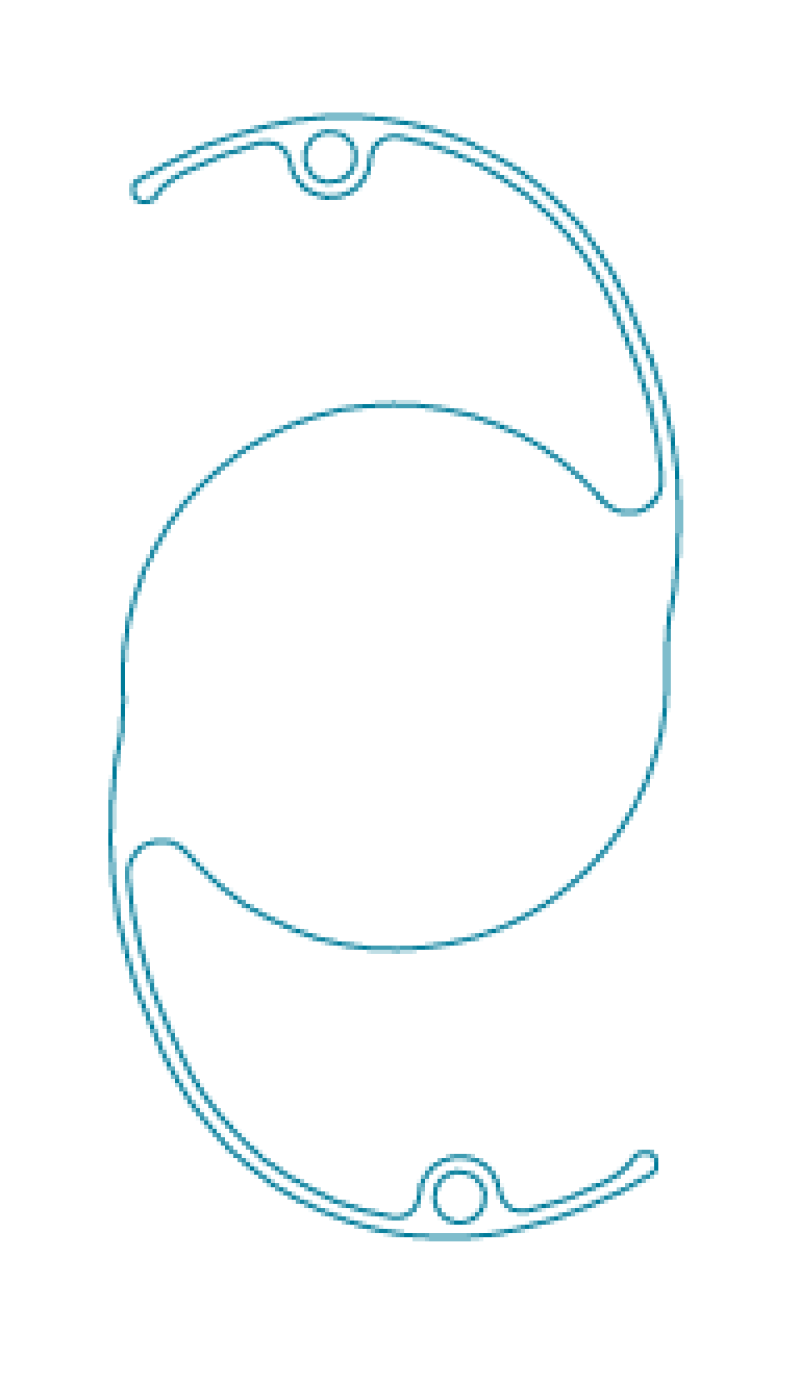

Haptic Design "Mod.C" Design with StepValult "Mod.C" Design with StepValult

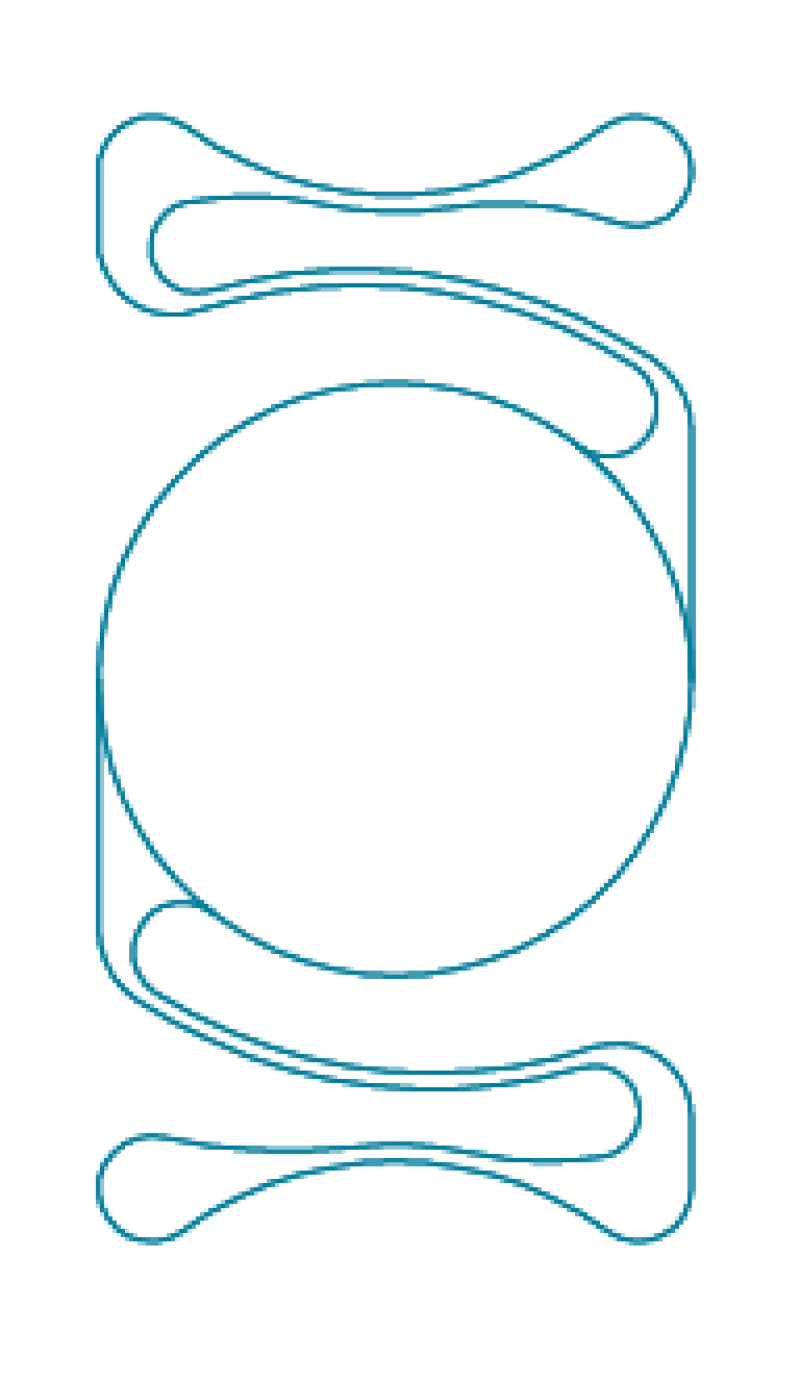

"Ant.S" Design with StepValult

 "Mod.C" Design with StepValult
Ac Depth 4.80 mm 4.80 mm 2.95 mm 4.80 mm
Dialing Holes 2 2 Nil 2
Suggested A Constant 118.2° 118.2° 115.3° 118.2°
Shelf Life 5 years after sterillization 5 years after sterillization 5 years after sterillization 5 years after sterillization
