Products --> Intraocular Lens --> Hydrophilic Intraocular Lens   --> Fold AS

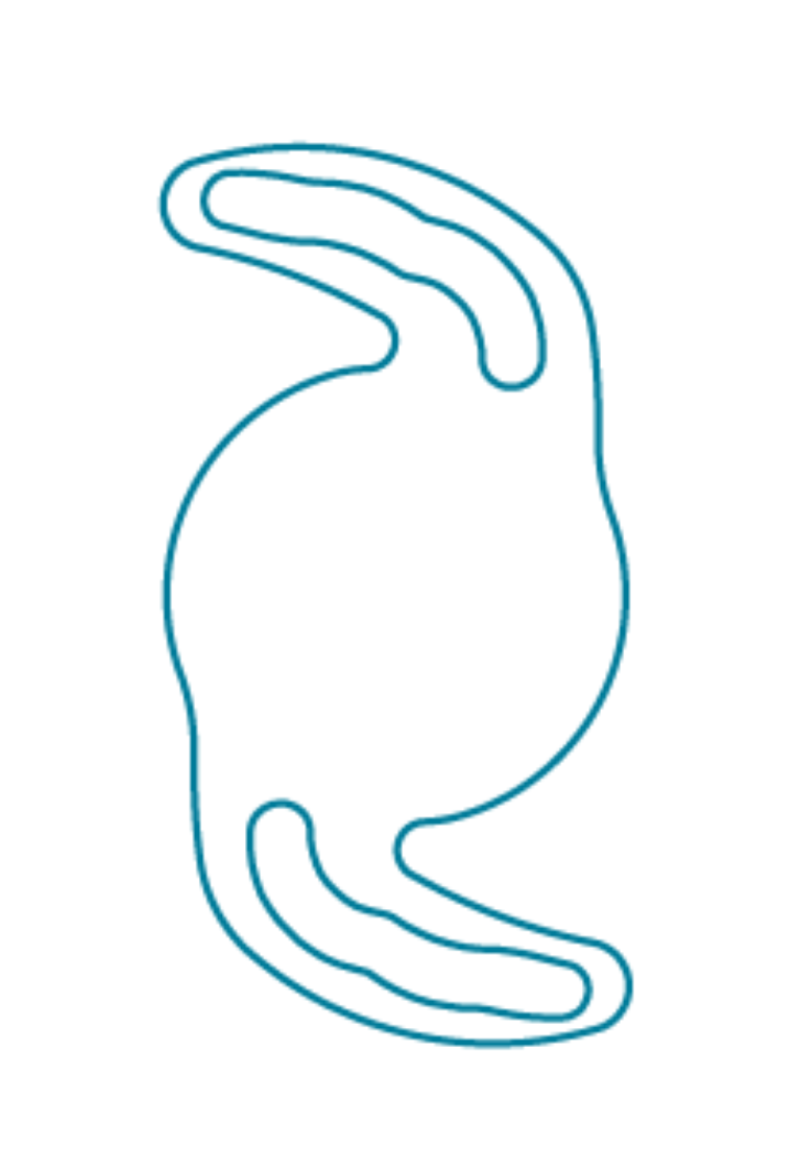

Hydrophilic Acrylic Foldable-FOLD AS

Description

Single Piece Sterile with 360° Square Edge Hydrophilic Arcylic Foldable CLEAR ASPHERIC Posterior Chamber Intraocular Lens(IOL) with UV blocker, Optionally with blue light filter.



Features

  1. This optic is MONOFOCAL

  2. The IOL is non-Preloaded , which has to be manually loaded into a compatible Injector.



Material

Coploymer of hydroxyethyl methacrylate and methyl methacrylate with 26% water content, UV blocker and optional blue light filter



Refractive Index 1.46
Sterilization Stream
MODEL; AMF 5120SQR AMF 6125SQ AMF 6125-SQR

OPTIC DIAMETER 5.75 mm 6.00 mm 6.00 mm
OVERALL DIAMETER 12.00 mm 12.00 mm 12.00 mm
HAPTIC DIAMETER Double Haptics Single Haptics Double Haptics
MODEL; AMF 6130SQ AMF 6010SQ AMF 6011SQ

OPTIC DIAMETER 6.00 mm 6.00 mm 6.00 mm
OVERALL DIAMETER 13.00 mm 10.50 mm 11.00 mm
HAPTIC DIAMETER Single Haptics Four Haptics Four Haptics



POWER RANGE


Standard Powers

00. 0 D -> + 30.0 D (0.5 D steps)

Extreme powers

-10.0 D -> -1.0 D (0.5 D steps)
+31.0 D -> +45.0 D (0.5 D steps)





DESIGN


Optic Diameter

Negative Aspheric – Aberration Neutral
Convex-concave (-10.0 D -> -1.0 D)
Biconvex (0.0 D -> +45.0 D)

Nominal A-constant

118.8

Haptic Design

Single Haptics with 0° Angulation

PCO Prevention

360° Square Edge

Shelf Life

3 years after sterilization





INJECTOR


Estimated Incision Size

1.8 – 2.4 mm

Injector & Cartridge

Front Load and Back Load with 2.2-2.4 mm Cartridge)





CONSTATS


SRK/T A-Constant

A = 118.0*

Haigis

a0 = 0.568*
a1= 0.400 *
a2= 0.100*

Hoffer Q

pACD = 4.80*

Holladay I

SF = 1.02*

SRK/ II A-Constant

A = 117.88
