Hydrophilic Acrylic Foldable-IOL

Description

Single Piece Sterile with 360° Square Edge Hydrophilic Arcylic Foldable SPHERICAL Posterior Chamber Intraocular Lens(IOL) with UV blocker, Optionally with blue light filter.



Features

  1. This optic is MONOFOCAL
  2. The IOL is non-Preloaded , which has to be manually loaded into a compatible Injector.



Material

Coploymer of hydroxyethyl methacrylate and methyl methacrylate with 26% water content, UV blocker and optional blue light filter



Refractive Index 1.493
Sterilization Stream



MODEL; AMF 5120R AMF 6125 AMF 6125-R

OPTIC DIAMETER 5.75 mm 6.00 mm 6.00 mm
OVERALL DIAMETER 12.00 mm 12.00 mm 12.00 mm



ODEL; AMF 6130 AMF 6010 AMF 6011

OPTIC DIAMETER 6.00 mm 6.00 mm 6.00 mm
OVERALL DIAMETER 13.00 mm 10.50 mm 11.00 mm



POWER RANGE


Standard Powers

00. 0 D -> + 30.0 D (0.5 D steps)

Extreme powers

-10.0 D -> -1.0 D (0.5 D steps)
+31.0 D -> +45.0 D (0.5 D steps)







DESIGN


Optic Diameter

Negative Aspheric – Aberration Neutral
Convex-concave (-10.0 D -> -1.0 D)
Biconvex (0.0 D -> +45.0 D)
Nominal A-constant

118.8

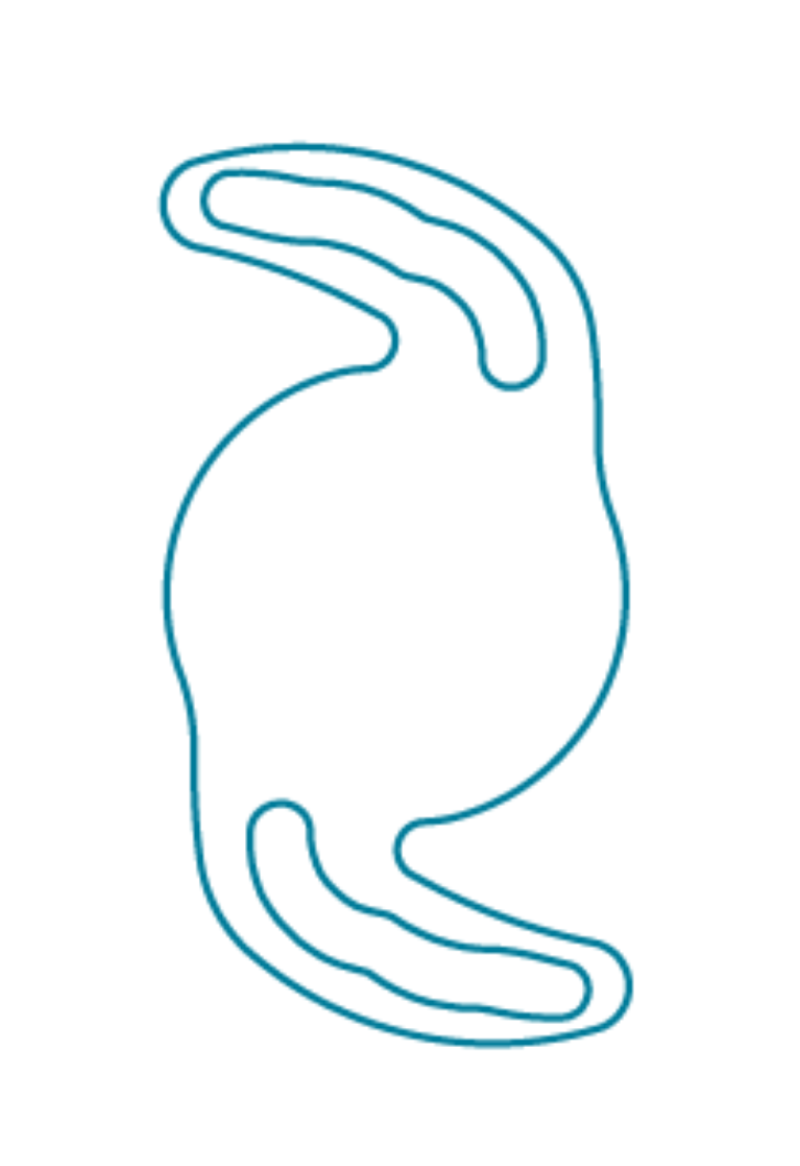

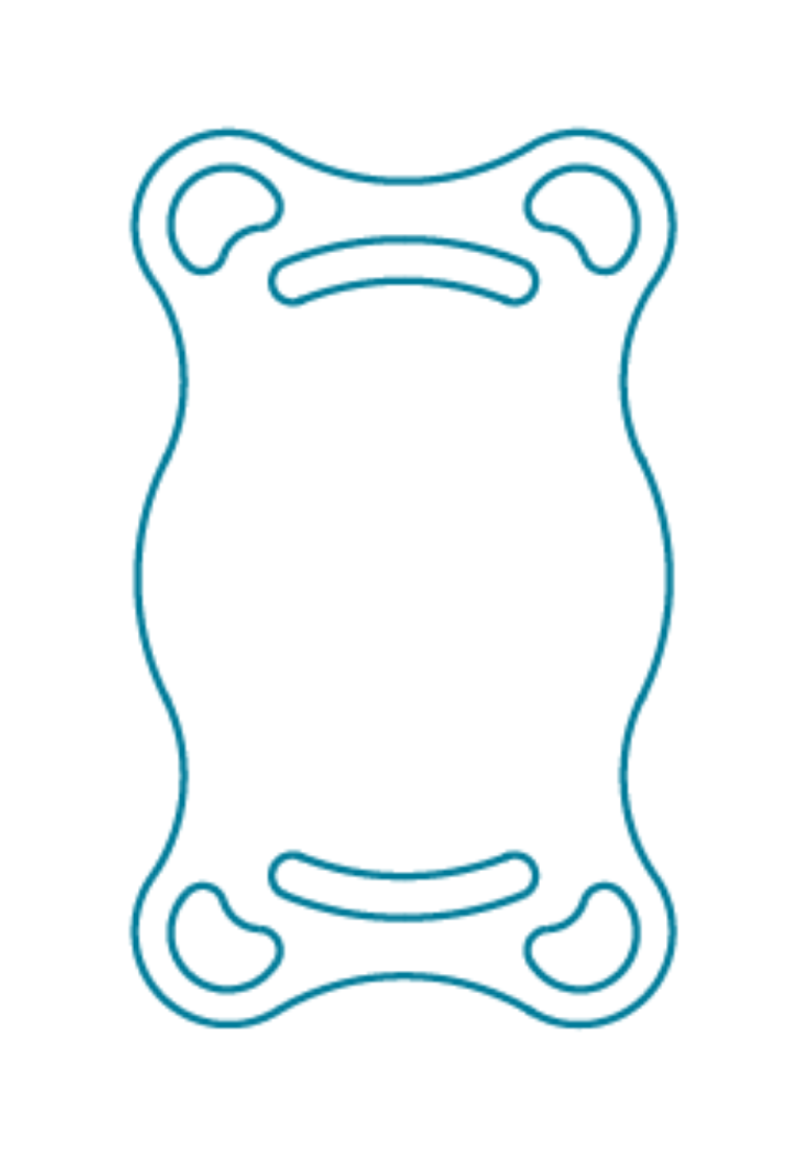

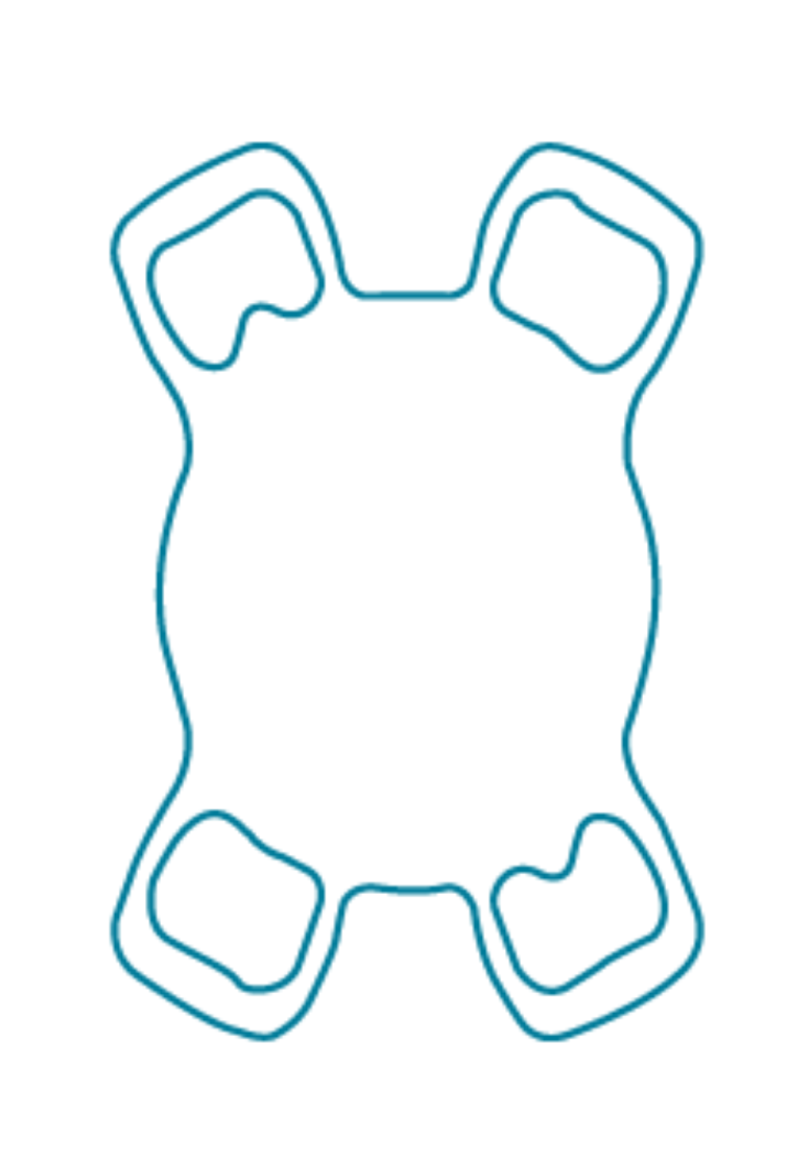

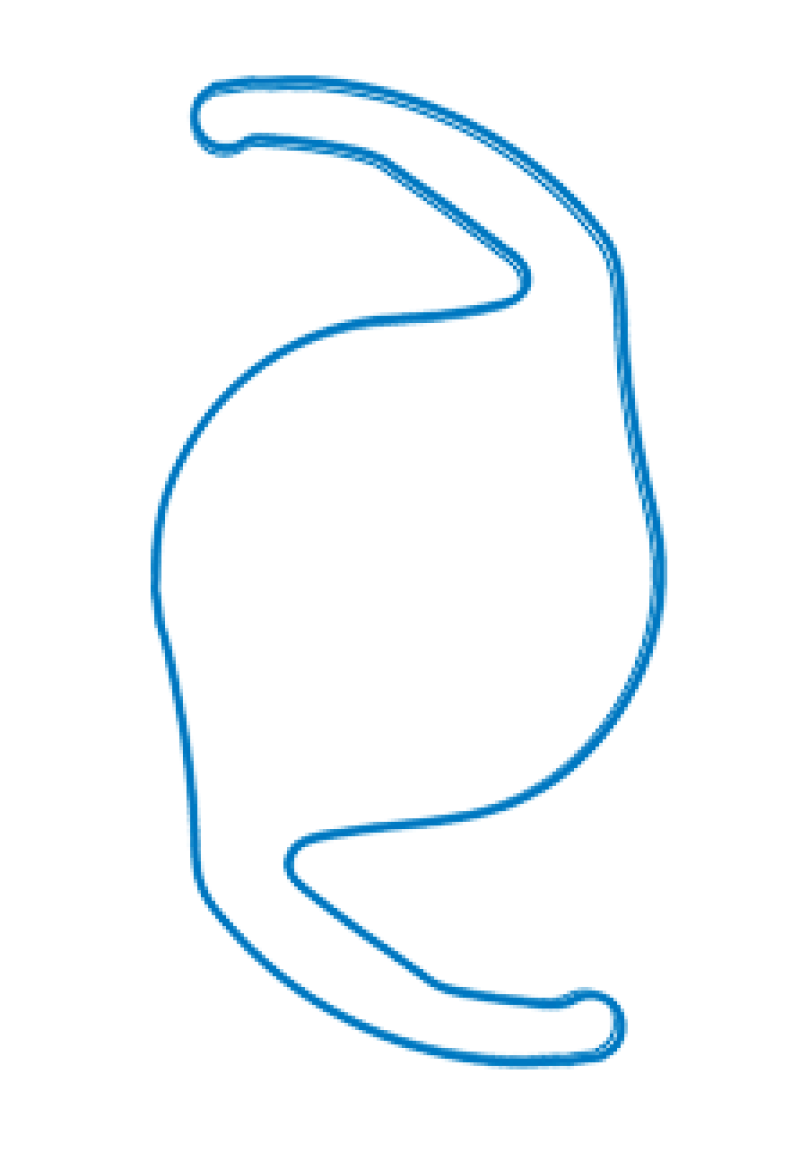

Haptic Design Double Haptics with 0° Angulation

PCO Prevention

360° Square Edge

Shelf Life

3 years after sterilization







INJECTOR

Estimated Incision Size 1.8 – 2.4 mm
Injector & Cartridge

Front Load and Back Load with 2.2-2.4 mm Cartridge)







CONSTATS

SRK/T A-Constant     A = 118.0*
Haigis a0 = 0.568*
a1= 0.400 *
a2= 0.100*
Hoffer Q     pACD = 4.80*
Holladay I     SF = 1.02*
SRK/ II A-Constant A = 117.88
