Products --> Intraocular Lens --> Trifocal
| Hydrophobic Acrylic Foldable - IOL |
Description

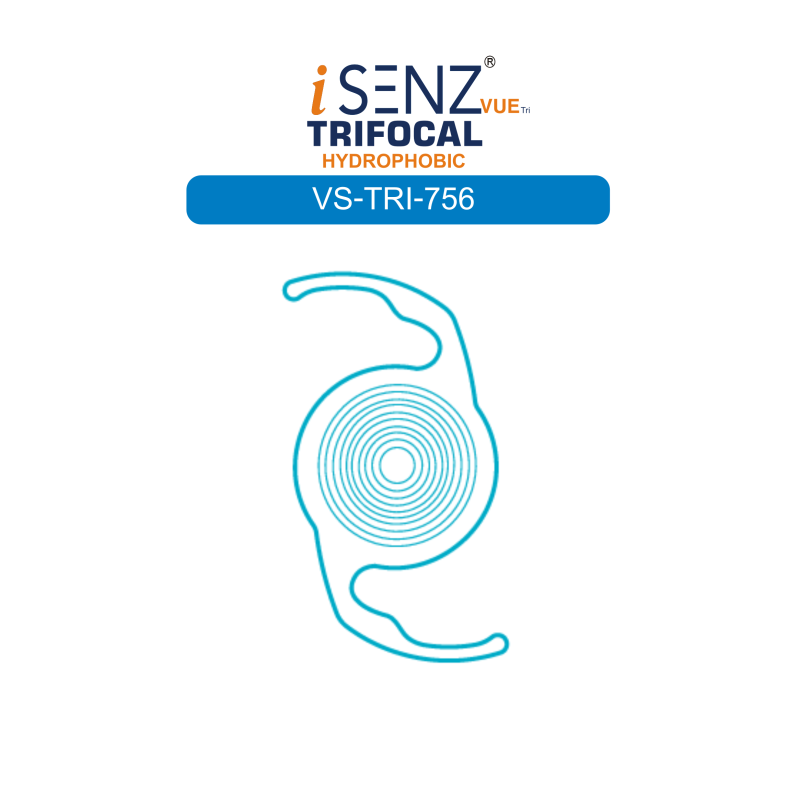

Single Piece Sterile with 360° Square Edge TRIFOCAL Hydrophobic Arcylic Foldable Aspheric Posterior Chamber Intraocular Lens(IOL) with UV blocker, Optionally with blue light filter.
Features
This optic is TRIFOCAL
The IOL packed with Preloaded and non-Preloaded injector.
Material
Hydrophobic Acrylic blanks contain UV Absorber with < 0.5% Water Content. optional blue light filtering Chromophore
| Refractive Index | 1.493 |
| Sterilization | Ethylene Oxide |
| POWER RANGE |
| Standard Powers | + 10.00 D to + 35.00 D (0.5 D steps) |
| Intermediate Addition | + 3.50 D Near + 1.75 D Intermediate |
.
| DESIGN |
| Optic Diameter | 6.00 mm |
|
Overall Diameter |
13.00 mm |
| Optic Design | Aspheric – Aberration Neutral Biconvex (+0.00 D to 35.00) |
| Nominal A-constant | 118.8 |
| Haptic Design | Single Haptics with 0° Angulation |
| PCO Prevention | 360° Square Edge |
| Shelf Life | 5 years after sterilization |
| INJECTOR |
| Estimated Incision Size | 1.8 – 2.4 mm |
| Injector & Cartridge | Front Load with 2.2 mm Cartridge (preload injector optional) |
| CONSTANTS |
| SRK/T A-Constant | A = 118.8* |
|
Haigis |
a0 = 1.96* a1= 0.400 * a2= 0.100* |
| Hoffer Q | pACD = 5.61* |
| Holladay I | SF = 1.85* |
| SRK/ II A-Constant | A = 119.1 |
